Specifications
Item Model Number: OK648-1500N
Rated Voltage: DC12V
Maximum Load/Actuation Force: 1500N
Travel Speed: 0.19 inch/s / 5 mm/s
Stroke Length: 16 inch / 400 mm
Protection Class: IP54
Noise Level: ≤60dB
Main Material: Aluminum Alloy
Net Weight: 2.97 lbs / 1.35 kg (including all accessories)
Product Dimensions: 20.66 x 2.95 x 1.57 inch / 525 x 75 x 40 mm

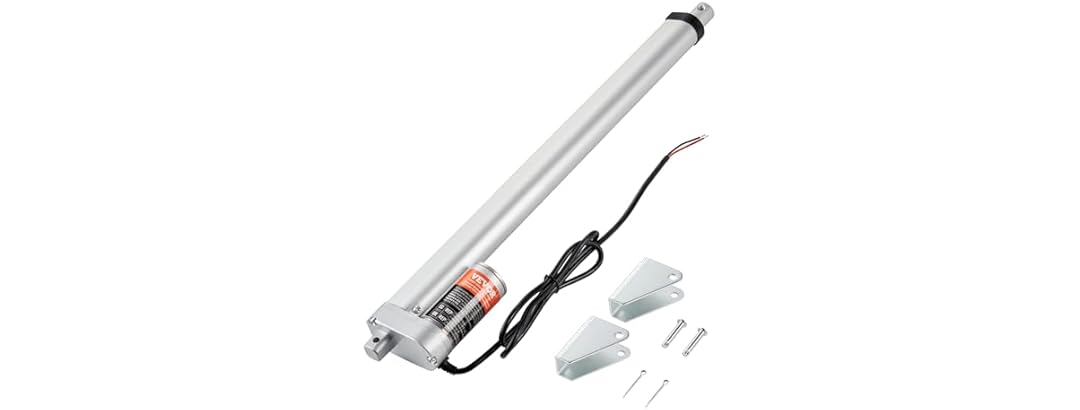

Package Content
1 x Linear Actuator
2 x Mounting Brackets
2 x Screw Rods
2 x R-Type Pins
- Precision Motion Control: VEVOR linear actuator offers precise position control with 0.19"/s stable speed and 330lbs high torque output. Perfect for tasks requiring exact positioning, such as robotic arms or electric beds that demand precision.
- Durable and Sturdy: With reinforced structure and all-metal transmission mechanism, our 12V linear actuator motor ensures reliability under high loads. Suitable for various industrial automation and laboratory equipment, it withstands the rigors of long-term use.
- Versatile Applications: With a noise level below 60db, our linear motion actuator seamlessly fits into various applications, from furniture to automation systems, mechanical equipment, transportation, and more. Enjoy versatile functionality wherever you need it!
- IP54 Protection Rating: With an IP54 protection rating, VEVOR 12V linear actuator excels in harsh environmental conditions like dust, splashing water, and light humidity. Whether for outdoor or industrial use, it provides exceptional protection. (Caution: Water should not penetrate the interior of the motor)
- Key Specifications: Stroke Length: 16 inch (400mm); Travel Speed: 0.19 in/s (5mm/s); Retracted Length: 20.66" (525mm); Extended Length: 36.66" (925mm); Current Draw: 5amps; Rated Voltage: DC12V; Duty Cycle: 25%.
- Friendly Notes: The selected adapter power supply requires a minimum current of 5A. Efficiency is at its highest when the actuation force is approximately 75% of its maximum value.
