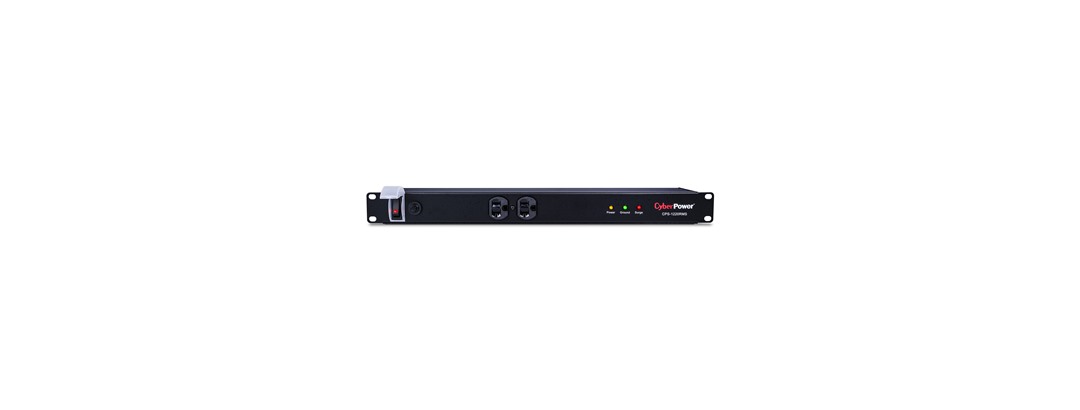

​Engineered for the most demanding applications, the professional-grade Rackbar Surge Protector CPS1220RMS from CyberPower safeguards systems and networking equipment by absorbing spikes in energy caused by storms and electrical power surges. Designed for network environments, the CPS1220RMS also performs superbly for home office use, providing 1800 joules of protection, 20-Amp electrical capacity with circuit breaker, and 12 surge-protected outlets (2 front, 10 rear). Industrial-grade metal housing keeps this Rackbar performing flawlessly. The CPS1220RMS has a 1U racksize and can be mounted horizontally.

• Surge Protection: Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
• EMI/RFI Noise Filter: Maintains clean power for connected equipment by filtering out electromagnetic and radio frequency interference to improve picture and sound quality.
• LED Indicators: Provide information about the model’s status: Power, Ground, and Surge.
• Power Management Features: Include network-grade plugs and outlets, an AC power cord.
• Industrial-Grade Metal Housing: Prolongs model life with rugged casing made of impact-resistant material for maximum durability.

Shipping Note: Shipping to Alaska, Hawaii, PO Boxes, and APO addresses is not available for this item

Warranty: 1 Year CyberPower Warranty

Optional Asurion Protection Plan: To further protect your purchase, you can buy an Asurion protection plan from Amazon here. Review the FAQs for additional information.

Specifications

Input

Circuit Breaker            20 A

Cord Length   15 ft (4.6 m)

Input Plug Type            NEMA 5-20P

Maximum Input Current        20A

Nominal Input Voltage            120 VAC

Plug Style         Straight

Switch Lighted On/Off

Output

Nominal Output Voltage        120 VAC

Outlet Type     12 – NEMA 5-20R

Outlets – Front             2

Outlets – Rear              10

Outlets – Total              12

Overload Protection  20A

USB Charge Port         No

Surge Protection & Filtering

Clamping Voltage       800V (H-N)

EMI/RFI Filtration        150 KHz

150 MHz

Yes

Maximum Surge Current       90000 A

Maximum Surge Current H-G             30000 A

Maximum Surge Current H-N             30000 A

Maximum Surge Current N-G             30000 A

Maximum Surge Voltage        6000 V

Surge Suppression (Joules)  1800 J
