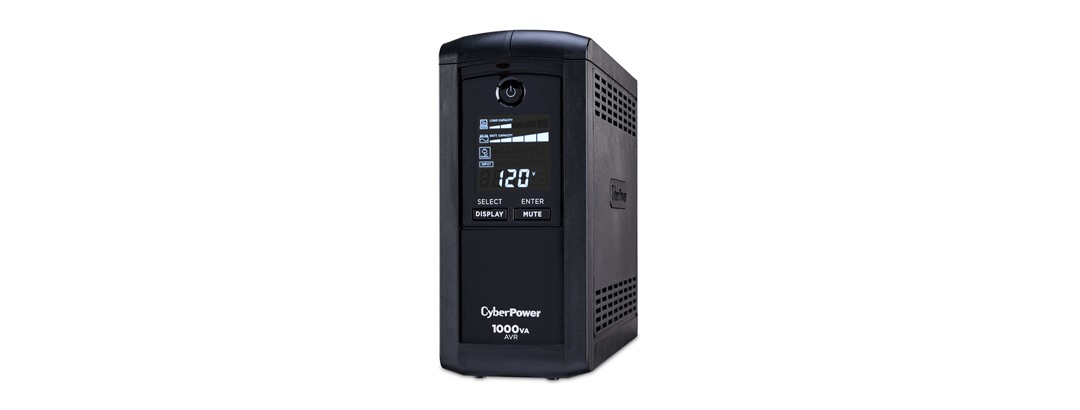

A mini-tower UPS with line interactive topology, the CyberPower Intelligent LCD CP1000AVRLCD provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. The CP1000AVRLCD uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently.

• Battery Backup
  Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.
• Surge Protection
  Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
• Automatic Voltage Regulation (AVR)
  AVR increases the AC power and maintains a safe voltage level without switching to battery mode and conserving battery life.
• Multifunction LCD
  Displays immediate, detailed information on the UPS battery and power conditions, alerting users to potential problems before they can affect critical equipment and cause downtime.
• Data Line Protection
  Prevents power surges that travel through coaxial and Ethernet lines from causing damage to electronics.
• Line Interactive Topology
  Exists when a line interactive UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery.
• Simulated Sine Wave Output
  Provides a manufactured waveform output to supply cost-effective battery backup power for equipment that does not require sine wave output.
• ENERGY STAR
  This model is an ENERGY STAR® certified Uninterruptible Power Supply (UPS) system. ENERGY STAR is the trusted, government-backed symbol for energy-efficient products and practices that help save money and protect the environment.
• GreenPower UPS™ Bypass Design
  A patented design that allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat buildup.
• Ultra Quiet Design
  Minimizes noise during operation for a quieter work environment.
• PowerPanel® Personal Software
  Provides a user-friendly dashboard interface for controlling and monitoring the UPS. Free software download available.
• Connected Equipment Guarantee
  CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.

The batteries have been replaced by the manufacturer as part of the re-conditioning process.

Shipping Note: Shipping to Alaska and Hawaii is not available for this item. A physical address is required for delivery. No Military or PO Box shipments available.

Warranty: 1 Year CyberPower Warranty

Optional Asurion Protection Plan: To further protect your purchase, you can buy an Asurion protection plan from Amazon here. Review the FAQs for additional information.

Specifications

General Energy Saving GreenPower UPS Bypass Technology Energy Star Certified Yes UPS Topology Line Interactive Battery Battery Quantity 1 Battery Size 12 V / 9 Ah Battery Type Sealed Lead-Acid Battery Replacement Battery Cartridge RB1290 Replacement Battery Cartridge Quantity 1 Runtime at Full Load 2 min Runtime at Half Load 9 min Typical Recharge Time 8 Hours Dimensions Physical Dimensions – (WxHxD) (cm) 9.91 x 22.86 x 25.91 (cm) Physical Dimensions – (WxHxD) (in) 3.9 x 9 x 10.2 (in) Physical Dimensions – (WxHxD) (mm) 99 x 229 x 259 (mm) Weight (kg) 6.8 Weight (lb) 15 Dimensions – Shipping Shipping – Weight (kg) 7.48 Shipping – Weight (lb) 16.5 Shipping Dimensions – (WxHxD) (cm) 16.84 x 30.48 x 35.89 (cm) Shipping Dimensions – (WxHxD) (in) 6.63 x 12 x 14.13 (in) Shipping Dimensions – (WxHxD) (mm) 168.4 x 304.8 x 358.9 (mm) Input Cord Length 6 ft (2 m) Input Frequency Range 57 – 63 Hz Input Plug Type NEMA 5-15P Input Voltage Range 90 VAC – 142 VAC Plug Style Right Angle – 45° Offset Output Automatic Voltage Regulation Single Boost On Battery Frequency 60 Hz ± 1% On Battery Voltage 120 VAC ± 5% On Battery Waveform Simulated Sine Wave Outlet Type NEMA 5-15R Outlets – Battery & Surge Protected 5 Outlets – Surge-Only Protected 4 Outlets – Total 9 Overload Protection Internal Circuitry Limiting
Circuit Breaker Protected Typical Transfer Time 4 ms Under/Over-Voltage Correction +10% VA 1000 VA Watts 600 W Management & Communications Audible Alarms Battery Mode
Low Battery
Overload
Fault HID Compliant USB Port Yes LCD Multifunction LCD LED Indicators Power On
Wiring Fault Management Cable USB Cable Serial Port 1 Dry Contact Software (Free Download) PowerPanel® Personal Physical Color Black Form Factor Mini-Tower Material of Construction Plastic Environmental Operating Elevation 0 – 10000 ft (0 – 3048 m) Operating Relative Humidity 0 – 90 % () Operating Temperature 32 – 104 °F (0 – 40 °C) Storage Elevation 0 – 50000 ft (0 – 15239 m) Storage Relative Humidity 0 – 95% (non-condensing) Storage Temperature 5 – 113 °F (-15 – 45 °C) Certifications Environmental RoHS Compliant Safety UL1778
cUL 107 5th
FCC Cl B Surge Protection & Filtering Coax Protection RG6 1 in
1 out EMI/RFI Filtration Yes Network Protection RJ45 1-in / 1-Out (10/100/1000) Surge Suppression (Joules) 1080

The batteries have been replaced by the manufacturer as part of the re-conditioning process.

In the Box:

• (1) CyberPower 1000VA/600W Intelligent LCD UPS System with AVR, and LCD (CP1000AVRLCD-R)
